Highlighted Features
- Ultra-low voltage: 0.5V @ 600A
- High power density: 3U 7.2 kW (150V), 3U 6 kW (600V & 1200V)
- 37U cabinet max power: 86.4 kW (150V), 72 kW (600V & 1200V)
- Minimum sampling interval in Scope mode: 2µs
- 1.5× overload capability (time will vary on voltage, power and environtment)
- Basic load modes: CC / CV / CP / CR /CE
- Combined load modes: CC+CR / CR+CV / CC+CV / CP+CV / CC+CR+CV+CP
- Transient frequency up to 50kHz

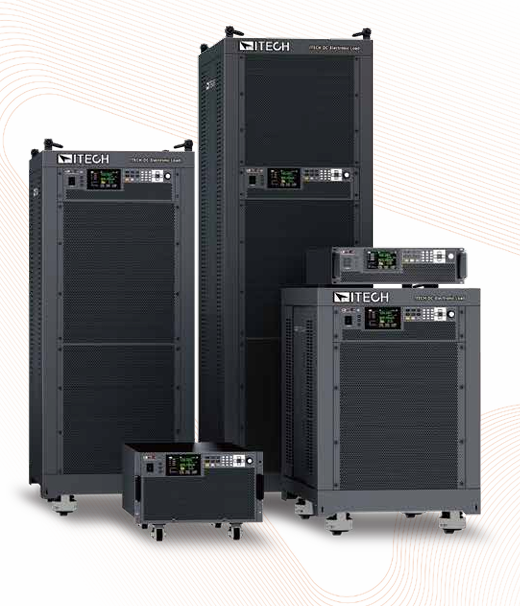

- The IT8100E series provides versatile operation and functions, enabling fast and convenient control via the 5-inch touchscreen, keypad, and rotary knob.
Three-range Design for High-precision Measurements
The IT8100E series is equipped with three voltage and current ranges, ensuring high-precision measurements across the entire range from light load to full load current. The measurement accuracy remains consistent, whether used as a single unit or in parallel.
High-speed Dynamic Load
With the rapid development of AI technology, AI server loads change frequently, demanding faster transient response from power systems.This also means that load testing must accurately simulate these high-frequency dynamic load variations. The IT8100E series offers dynamic load capabilities up to 50 kHz, including dynamic current load (CCD) and dynamic resistance load (CRD). The current slew rate can reach up to 150 A/µs per unit, with a minimum response time of 8 µs, meeting the high-speed transient response testing requirements of switching power supplies.
1.5x Short-time Overload Capability
The IT8100E series electronic load offers exceptional overload capability, supporting a 1.5x short-time overload. This feature allows users to perform peak load testing with short-term overload power, which is especially necessary under extreme load conditions, such as for power supplies, battery chargers, and other power electronic devices. This functionality ensures the IT8100E series provides a more efficient and cost-effective solution.
