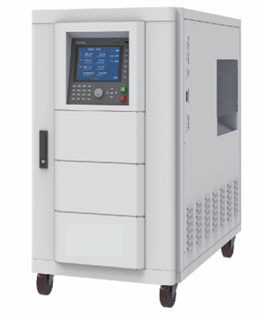

AC Power Supply ANCC(F) Series Low Voltage High Current
The ANCC(F) Series Constant Current AC Power Supply adopts FPGA digital control, instantaneous waveform control, high-frequency pulse width modulation (SPWM) technology, etc. It has the advantages of fast response speed, high output accuracy, superior waveform quality, strong load adaptability, etc. The power supply is capable of outputting a constant current alternating waveform with strong load adaptability.
Featuring an 8-inch color LCD, the product has an exquisite and high-end appearance, coupled with number keys for more convenient operation. Under the condition of low voltage, it can output a constant large current, meeting the low-voltage distribution device inspection such as air switches, contactors, and transformers, and the design and production verification of transformers and inductors. It is ideal testing equipment for device manufacturers, quality inspection centers, and certification centers, which can reduce energy waste caused by load consumption under large current test conditions.
Application Fields
It replaces traditional voltage and current regulation methods, with precise control and simple operation.
Product Features
♦ Provides low voltage and large current AC output with a current capacity up to 4000A
♦ Adopts FPGA digital technology for precise control and high-quality sine wave output
♦ Adjustment of current and frequency under output state with immediate frequency change without transition time
♦ Output frequency ranges from 45 to 65 Hz, adapting to the test requirements of different grids and devices
♦ Measurements: voltage, current, current peak value, frequency, active power, apparent power, power factor, and voltage peak factor
♦ Online monitoring function: monitor parameters such as IGBT temperature, transformer temperature, fan speed, and input voltage under output state
♦ Power-off memory function capable of remembering the last output mode and parameters
♦ "Black box" function: automatically record power supply status, alarm codes, etc. to greatly reduce maintenance time
♦ 8-inch large screen color LCD display and number key operation
♦ Key lock with a user-friendly design that automatically locks after 5 minutes of inactivity to prevent misoperation
♦ Fan speed is automatically adjusted according to the power supply temperature, reducing noise
♦ Standard RS232 communication interface, optional RS485/GPIB/Ethernet communication interfaces or analog control mode
