About BSS2000

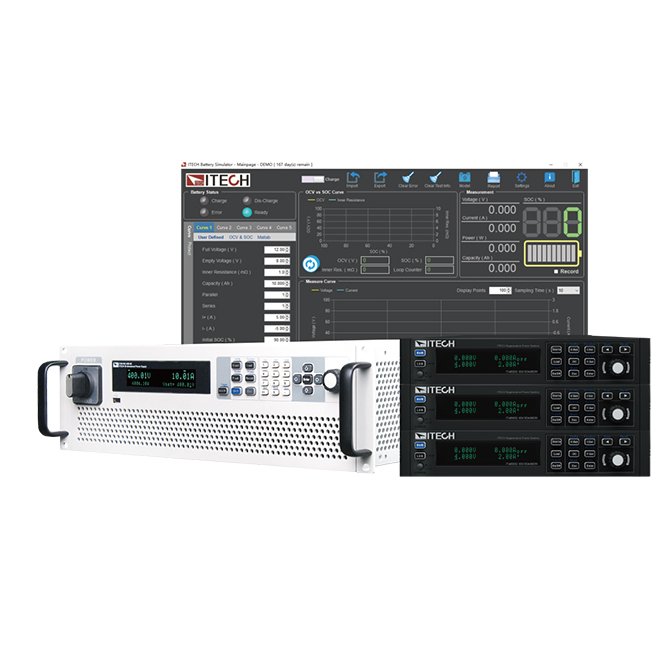

BSS2000 & BSS2000 Pro software combined with ITECH's latest high-performance bidirectional DC power supply, IT6000B/IT6000C/IT-M3400/IT-M3600/IT6000C, covering a power range up to 10MW, can provide users with a wide range simulation solution covering low-power battery module to high-power power battery system simulation. The BSS2000 basic version, BSS2000 Pro version and BSS2000M Multi-channel version of the battery simulating software are products specifically designed for the above test scenarios. On the one hand, it will solve the problem of increasing cost of buying and storage of different types of batteries; On the other hand, the battery simulator can be quickly set to different state of SoC without real charge and discharge process, greatly improve test efficiency.
Application Fields
♦ E-mobility testing
EV powertrain, Fuel cell power distribution (FCEV PDU)
♦ Solar PV testing
Renewable energy storage control unit, smart micro grid PCS
♦ Specialty
Aerospace and defense energy storage, battery management system (BMS), rebuild the mathematical model of novel batteries
Product Features
♦ Battery simulation range: 2250V/10MW
♦ Support multi-channel battery module status simulation
♦ Bidirectional regenerative battery simulator, regenerative efficiency up to 95%
♦ Seamless switching between battery charging and discharging mode
♦ Support user-defined battery characteristic curve import
♦ Support quick set up of battery characteristic curves by input common parameters
♦ Support .mat file import function *2
♦ BMS protocol self-defined function, realize CAN bus communication with the external control unit
♦ Built-in various battery types (include LeadAcid, Lion, LMO, LNMCO, LNMCO&LMO, LFP, LTO, NiMH) *1
♦ Battery protection parameter setting function
♦ Battery output initial state of charge setting function
♦ Ideal data report function

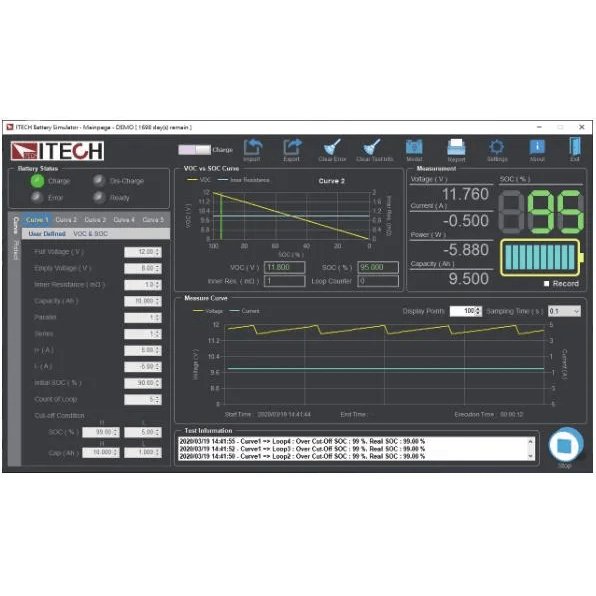

♦ Battery curve preview and real-time curve display function
♦ Flexible expansion by parallel for larger current/power simulation request
♦ Support up to 20 channels battery simulation *3
Models
| Model | Version | Channel | Built-in Battery Curve Library |
|---|---|---|---|
| BSS2000 | Basic | Single channel | 2 types: Lithium-ion, Lead-acid |
| BSS2000 Pro | Professional | Single channel | 8 types: Lead Acid, Lithium Ion, Nickel Metal Hydride, Lithium Iron Phosphate, Ternary Lithium, Lithium Manganate, Lithium Titanate, Lithium Nickel Cobalt Manganate |
| BSS2000M | Professional | Multiple channel | 8 types: Lead Acid, Lithium Ion, Nickel Metal Hydride, Lithium Iron Phosphate, Ternary Lithium, Lithium Manganate, Lithium Titanate, Lithium Nickel Cobalt Manganate |
